Using the RAG Extractor Agent¶

This tutorial will guide you through using NERxiv's RAG (Retrieval-Augmented Generation) extractor agent to extract structured metadata from scientific papers. The RAG agent combines text chunking, semantic retrieval, and LLM-based generation to intelligently extract information in JSON format from arXiv papers.

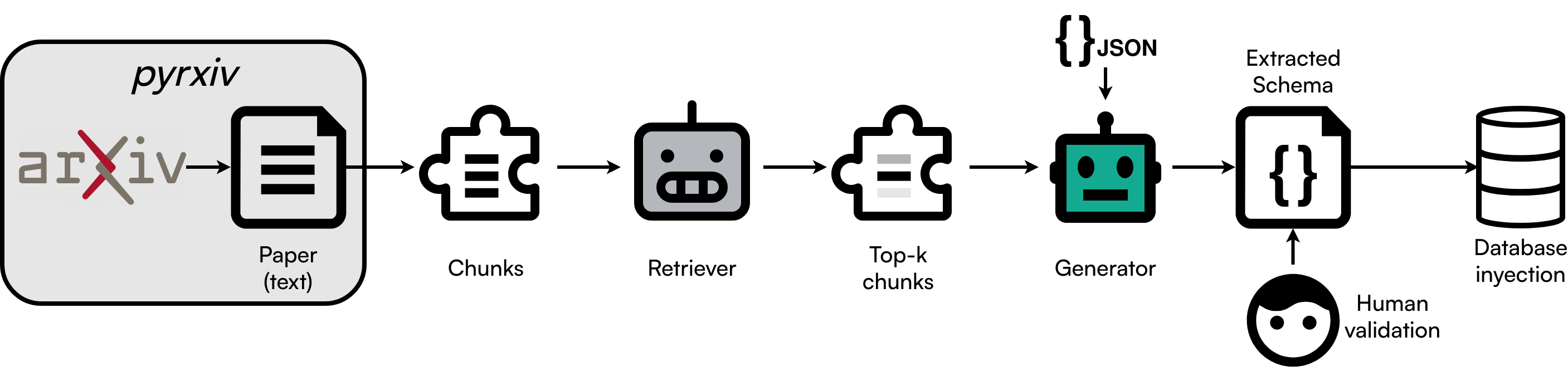

The RAG extractor agent is a three-stage pipeline that:

Chunks the paper text into smaller, manageable pieces
Retrieves the most relevant chunks based on a query
Generates structured JSON answers using an LLM model

Prerequisites

Python ≥ 3.10 installed
A virtual environment with nerxiv installed
Downloaded and set up Ollama for running LLMs locally
At least one LLM model pulled: ollama pull gpt-oss:20b (or your preferred model)
An HDF5 file containing extracted paper text using pyrxiv (see the How to Use pyrxiv documentation)

Notebook example

We prepared a notebook example in tutorials/rag_extractor_tutorial.ipynb following the same steps. For marimo users, we also have the same tutorial in tutorials/rag_extractor_tutorial_mo.py

Installation and Setup¶

Create an empty test directory¶

We will test the nerxiv functionalities in an empty directory. Open your terminal and type:

mkdir test_nerxiv
cd test_nerxiv/

Paths in Windows

The commands written here are all done in Ubuntu. For Windows, please, change the paths accordingly

Create a Virtual Environment¶

We strongly recommend using a virtual environment to avoid conflicts with other packages.

Using venv:

python3 -m venv .venv
source .venv/bin/activate

Using conda:

conda create --name .venv python=3.10  # or any version 3.10 <= python <= 3.12
conda activate .venv

Install the Package¶

nerxiv is part of the PyPI registry and can be installed via pip:

pip install --upgrade pip
pip install nerxiv

Faster Installation

For faster installation, you can use uv:

pip install uv
uv pip install nerxiv

In case of running the Jupyter notebook or Marimo tutorials, install the corresponding dependencies as well.

Verify Installation¶

You can verify that the installation was successful by opening the terminal and typing:

nerxiv --help

If everything was successful, you will see the usage of the CLI:

Usage: nerxiv [OPTIONS] COMMAND [ARGS]...

  Entry point to run `nerxiv` CLI commands.

Options:
  --help  Show this message and exit.

Commands:
  prompt      Prompts the LLM with the text from the HDF5 file and stores...
  prompt_all  Prompts the LLM with the text from all the HDF5 file and...

Ollama servers¶

Whenever you want to use the RAGExtractorAgent and run prompting, you need an Ollama server running constantly. This can be done by opening a new terminal window and running:

ollama serve

The RAGExtractorAgent will then take care of invoking the LLM and prompting it for results.

Basic Usage¶

The simplest way to use the RAG extractor is through the CLI prompt command. Open a terminal and type:

nerxiv prompt --file-path /path/to/paper.hdf5

This will:

Use the default Chunker to split the text
Use the default retriever model (all-MiniLM-L6-v2)
Retrieve the top 5 most relevant chunks
Use the default LLM model (gpt-oss:20b)
Execute the default query (filter_material_formula) to extract material formulas

Understanding the Pipeline¶

Step 1: Chunking¶

The chunker divides the paper text into smaller pieces. NERxiv provides three chunking strategies:

Chunker: Fixed-size chunks with overlap (default: 1000 characters, 200 overlap)
SemanticChunker: Sentence-level semantic chunking using spaCy
AdvancedSemanticChunker: KMeans-based clustering on sentence embeddings

Example with semantic chunking:

nerxiv prompt --file-path paper.hdf5 --chunker SemanticChunker

See API References for more details on these classes.

Step 2: Retrieval¶

The retriever uses a sentence transformer model to:

Encode the retrieval query and all chunks into embeddings. The retrieval query is defined in nerxiv.prompts.prompt_registry.py in the PROMPT_REGISTRY variable (see below)
Compute cosine similarity between the query and each chunk
Return the top-k most relevant chunks relative to the retrieval query

The default retriever model is all-MiniLM-L6-v2 from SentenceTransformers, but you can specify others:

nerxiv prompt --file-path paper.hdf5 --retriever-model all-mpnet-base-v2

You can also adjust how many top-k chunks to retrieve:

nerxiv prompt --file-path paper.hdf5 --n-top-chunks 10

Step 3: Generation¶

The LLM generator takes the retrieved chunks and answers your query using a carefully crafted prompt. The answer is structured according to the query type defined in the PROMPT_REGISTRY.

See Programmatically Running the RAGExtractorAgent for more details about the PROMPT_REGISTRY and generation.

Using Different Queries¶

NERxiv comes with predefined queries in the PROMPT_REGISTRY. Each query has:

A retriever query: Guides what content to retrieve
A prompt template: Instructs the LLM on what to extract

Available queries include:

filter_material_formula: Filters papers which are done over a real material chemical formula or a simplified model.
filter_only_dmft: Filters papers by checking if Dynamical Mean-Field Theory (DMFT) methodology is used.
dft: Returns structured Density Functional Theory (DFT) schema populated.

Example:

nerxiv prompt --file-path paper.hdf5 --query filter_only_dmft

All these are use-case examples which are probably not applicable to your case. If you learn how to define your own custom structured prompts, go to Programmatically Running the RAGExtractorAgent and How-to: Create Custom Prompts.

Configuring LLM Parameters¶

The LLM behavior is controled using --llm-option (or -llmo) flags. These are corresponding to the inputs of OllamaLLM and are passed as key=value pairs:

nerxiv prompt \
  --file-path paper.hdf5 \
  --model llama3.1:70b \
  -llmo temperature=0.2 \
  -llmo top_p=0.9 \
  -llmo num_ctx=8192

Common LLM parameters:

temperature: Controls randomness (0.0 = deterministic, 1.0 = creative)
top_p: Nucleus sampling threshold
num_ctx: Context window size

Complete Example¶

Here's a complete example extracting material formulas with custom settings:

nerxiv prompt \
  --file-path ./data/papers/2502.12144v1.hdf5 \
  --chunker AdvancedSemanticChunker \
  --retriever-model all-mpnet-base-v2 \
  --n-top-chunks 8 \
  --model llama3.1:70b \
  --query dft \
  -llmo temperature=0.1 \
  -llmo num_ctx=16384

This command:

Uses advanced semantic chunking with KMeans clustering
Uses a more powerful retriever model
Retrieves the top 8 most relevant chunks
Uses the 70B parameter Llama model
Sets low temperature for consistent outputs
Expands the context window to 16K tokens

Processing Multiple Papers¶

To process all papers in a directory, use the prompt_all command:

nerxiv prompt_all \
  --data-path /directory/containing/the/papers/ \
  --query dft \
  --model llama3.1:70b

This will process all .hdf5 files in the specified directory with the same configuration.

Output Storage¶

The RAG extractor stores results directly in the HDF5 file under the rag_extraction group. This group contains 3 sub-groups:

chunks_cache: a local group database for the chunks
retrieval_cache: a local group database for the retrieved top-k chunks
raw_llm_answers: the generated LLM answers

Under the raw_llm_answers group, a new group is created with the name of the query/prompt you want to do. For example, if you run:

nerxiv prompt --file-path paper.hdf5 --query filter_only_dmft

This will create a group filter_only_dmft under raw_llm_answers. Then for each run of that specific prompt, we define a run_XXXX. The number of group goes from run_0001 incrementing depending on how many times you run that prompt. The combined pyrxiv+NERxiv HDF5 groups diagram is:

arxiv_paper_hdf5
├── arxiv_id
│   └── arxiv_paper
│       ├── authors
│       ├── categories
│       └── text
└── rag_extraction
    ├── chunks_cache
    │       ├── b540959gnis... (hash)
    │       ├── ff48418kpd1...
    │       └── ...
    ├── retrieval_cache
    │       ├── p098na87bnb...
    │       ├── f5sn901nx01...
    │       └── ...
    └── raw_llm_answers
        ├── dft
        │   ├── run_0001
        │   │   ├── answer
        │   │   └── prompt
        │   ├── run_0002
        │   │   ├── answer
        │   │   └── prompt
        │   └── ...
        ├── another_query
        │   ├── run_0001
        │   │   ├── ...
        │   └── ...
        └── ...

You can inspect the results by opening the HDF5 file with any HDF5 viewer (e.g., HDFView) or using Python:

import h5py

with h5py.File("path/to/paper.hdf5", "r") as f:
    raw_llm_answers = f["rag_extraction"]["raw_llm_answers"]
    # List all runs
    runs = list(raw_llm_answers.keys())

    # Access the latest run
    latest_run = raw_llm_answers[runs[-1]]

    # Read the answer
    answer = latest_run["answer"][()].decode("utf-8")
    print(answer)

Programmatically Running the `RAGExtractorAgent`¶

If instead, you want to run the RAGExtractorAgent, here we explain the steps needed to be done. You can also run and modify the tutorials we mentioned at the beginning of this documentation page.

In your folder, create three files: run_script.py, datamodel.py, and prompt_registry.py. - run_script.py: this script will contain the running calls for the agent and necessary logic behind it. - datamodel.py: this module will contain the pydantic model definitions needed to extract metadata from an arXiv paper and validate it. - prompt_registry.py: this registry will contain the prompts needed to extract the workflow we are targetting in our paper.

For the sake of this example, we recommend choosing any recent paper from the cond-mat.str-el category on arXiv. You can search and download the corresponding HDF5 needed for NERxiv using pyrxiv:

pyrxiv search_and_download --save-hdf5 --category cond-mat.str-el --start-id "2505.21995v2" --n-papers 1

This will create a data/ folder in your directory and store the corresponding PDF and HDF5 paper in there.

Define a Data Model¶

We will simply try to extract Density Functional Theory (DFT) metadata in an oversimplified way. For this, we will create a pydantic model class DFT and add a couple of fields. In datamodel.py:

from pydantic import Field

from nerxiv.datamodel.base_section import BaseSection


class DFT(BaseSection):
    """
    Section representing the Density Functional Theory (DFT) parameters used in the simulation
    of a material. This includes information about the computational code, exchange-correlation
    functional, basis set, pseudopotentials, cutoffs, k-point sampling, relativistic treatment,
    and spin-orbit coupling. Intended to capture the setup of DFT calculations as reported in
    computational materials science papers.
    """

    code_name: str | None = Field(
        None,
        description="""
        Name of the DFT software/code used. For example, 'VASP', 'Quantum ESPRESSO', 'FP-LMTO'.
        """,
    )

    code_version: str | None = Field(
        None,
        description="""
        Version of the DFT code. For example, '6.7', '7.3.2'.
        """,
    )

Notes: - Using BaseSection from NERxiv is totally optional. You can instead directly use BaseModel from pydantic. - Be descriptive without overexplaining what is each class and field. - Add a default None for all fields to avoid problems when the LLM validates results. This is based on the fact that, 1) not all papers contain all metadata fields in their text, and 2) the agent might fail extracting some field. - Adding examples in the description of fields is totally optional. But it helps the agent to format better the output.

Adding Structured Prompts to the `PROMPT_REGISTRY`¶

With the DFT model defined in the previous section, we can now define the structured prompt we will use to extract structured metadata in JSON format and adapted to this model. In prompt_registry.py:

from nerxiv.prompts.prompts import (
    PromptRegistryEntry,
    StructuredPrompt,
    PROMPT_REGISTRY
)
from datamodel import DFT


new_entry = PromptRegistryEntry(
  retriever_query="""Identify all mentions of Density Functional Theory (DFT) calculations,
  defined as any description of electronic-structure computations within the Kohn-Sham
  formalism, including the chosen exchange-correlation functional, computational code, basis
  set, pseudopotential, convergence parameters, or spin treatment. Include any statements
  about how the DFT calculation was performed, validated, or referenced from prior work.""",
  prompt=StructuredPrompt(
      expert="Condensed Matter Physics",
      output_schema=DFT,
      target_fields=["all"],
      constraints=[
          "Return ONLY the requested JSON object without any additional text or explanation.",
          "If you do NOT find the value of a field in the text, do NOT make up a value. Leave it as null in the JSON output.",
          "Do NOT infer values of fields that are not explicitly mentioned in the text.",
          "Return the JSON as specified in the prompt. Do NOT make up a new JSON with different field names or structure.",
          "Ensure that all parsed values are of the correct data type as defined in the targeted section.",
      ],
      examples=[],
  ),
)

PROMPT_REGISTRY["dft"] = new_entry

Notes: - We created a new registry entry in the PROMPT_REGISTRY. You can add as many new entries as you want to extract metadata from a defined datamodel. - We need to include a retriever_query to improve the extraction of the most relevant top-k chunks. - StructuredPrompt contains some attributes that can be modified: - expert: a string containing the expertise expected by the LLM. This translated into "Act like an expert in \<expert>". - output_schema: the pydantic model we want to target, e.g., DFT. - target_fields: the fields we want to extract from the pydantic model. If all is chosen, the LLM will attempt to extract all metadata fields defined in the pydantic class. - constraints: a list of instructions to constraint the behavior of the generated answer - examples: a list of examples; see How-to: Create Custom Prompts for more details about this attribute.

Running `RAGExtractorAgent`¶

Both the datamodel and prompt registry defined above will help us running our agent to extract the desired information (in this example, two strings under DFT, code_name and code_version).

In run_script.py:

from pathlib import Path

import h5py

from nerxiv.chunker import Chunker
from nerxiv.rag import CustomRetriever, LLMGenerator, RAGExtractorAgent

from datamodel import DFT
from prompt_registry import PROMPT_REGISTRY


query = "dft"
entry = PROMPT_REGISTRY[query]
prompt = entry.prompt


# Define dictionaries of parameters for chunking, retrieval, and generation
chunker_params = {
  "chunk_size": 2000,
  "chunk_overlap": 500,
}
retriever_params = {
  "query": entry.retriever_query,
  "model": "all-MiniLM-L6-v2",
  "n_top_chunks": 5,
  "query_name": query,
}
generator_params = {
  "temperature": 0.1,
  "model": "gpt-oss:20b",
}

# Create an instance of the `RAGExtractorAgent`
agent = RAGExtractorAgent(
    chunker=Chunker,
    retriever=CustomRetriever,
    generator=LLMGenerator,
    chunker_params=chunker_params,
    retriever_params=retriever_params,
    generator_params=generator_params,
)

# Run the agent for a specific HDF5 file as downloaded with pyrxiv
with h5py.File(Path("path_to_hdf5.hdf5"), "a") as f:
  arxiv_id = f.filename.split("/")[-1].replace(".hdf5", "")
  text = f[arxiv_id]["arxiv_paper"]["text"][()].decode("utf-8")
  agent.run(file=f, text=text, prompt=prompt)

This workflow will run the RAGExtractorAgent, extract the specific target fields for the specific output schema in the PROMPT_REGISTRY dictionary, and store the results in the HDF5 file containing the queried arXiv PDF information.

Notes: - We used the normal Chunker in this example. Depending on the chunker you use, you will need to modify the chunker_params dictionary accordingly.
